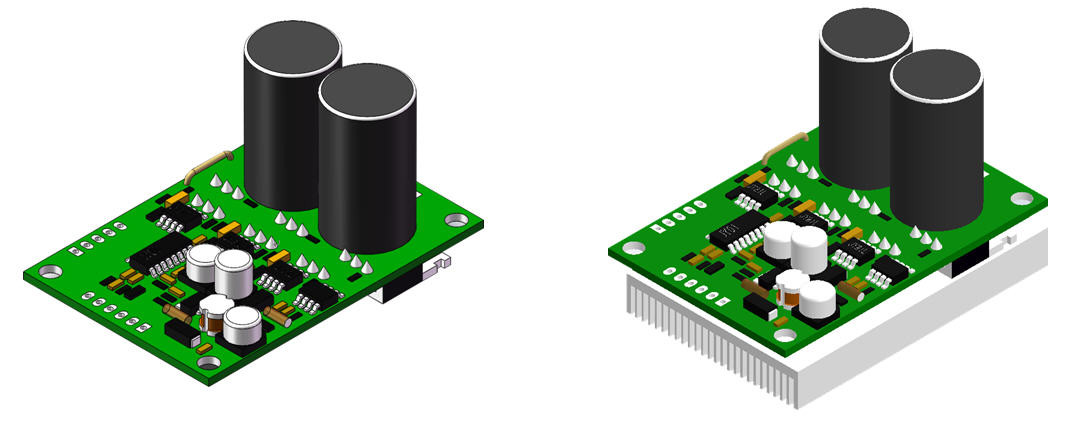

JYQD-V7.5E 36-72VDC 15A Working Current 3-Phase BLDC motor driver board for Hall effect BLDC Motor

Specifications

1. Control port

5V — Driver board internal output voltage, external potentiometer or switch for speed adjustment and reversing operation

Z/F — Rotating direction control ports. Connect “5V” high level or no connect is Forward direction, connect 0 V low level or connect to GND is reverse direction.

VR — Speed control port. Analog voltage linear speed regulation 0.1v -5V, The input resistance is 20K Ohm ,connect with GND when input PWM speed regulation, PWM frequency:1-20KHZ; Duty cycle 0-100%

EL — Enable port control. Connect 5V or no connect to allow operation, connect GND to forbid operation.

Signal — Speed pulse signal output

GND— Used for Drive board internal control

2. Power port

MA ---- motor phase A

MB ---- motor phase B

MC ---- motor phase C

GND ---- DC -

VCC ---- DC +

3:Hall sensor port

Ha--- Hall a

Hb---Hall b

Hc---Hall c

GND---GND

5V---5V output

4. Use shielded wires if the drivers board has more than 50 cm distance from the motor, otherwise it may lead to abnormal driving, affecting the normal use.

5. Control port distance: 2.54mm,Power port distance:3.96 mm

6. Pay attention to the insulation between the driver MOSFET and the heatsink or the installation plate.

Dimensional drawing

We can also provide additional components such as cables, heat sinks, connectors, etc. for our driver board

DOWNLOAD JYQD-V7.5E USER MANUAL

JYQD-V7.5E-English.pdf
